Active SCADA
Active SCADA
Monitor and control the status of moving devices such as motors, pumps, and valves in your plant with live SCADA symbols. Keep full control with rotating animations and color changes when devices are active.
Active SCADA
Animated interactive SCADA symbols for motors, pumps, and valves

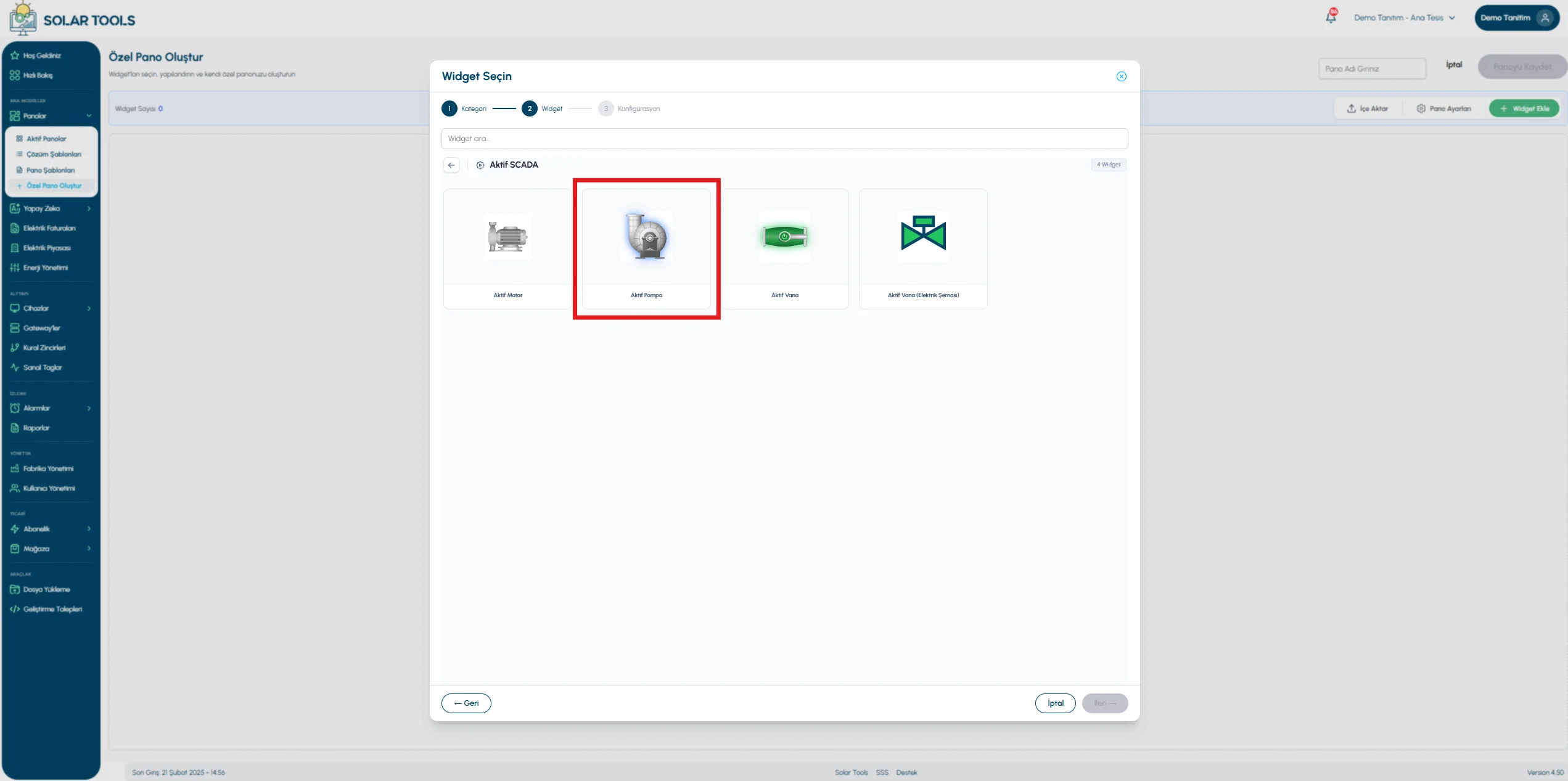

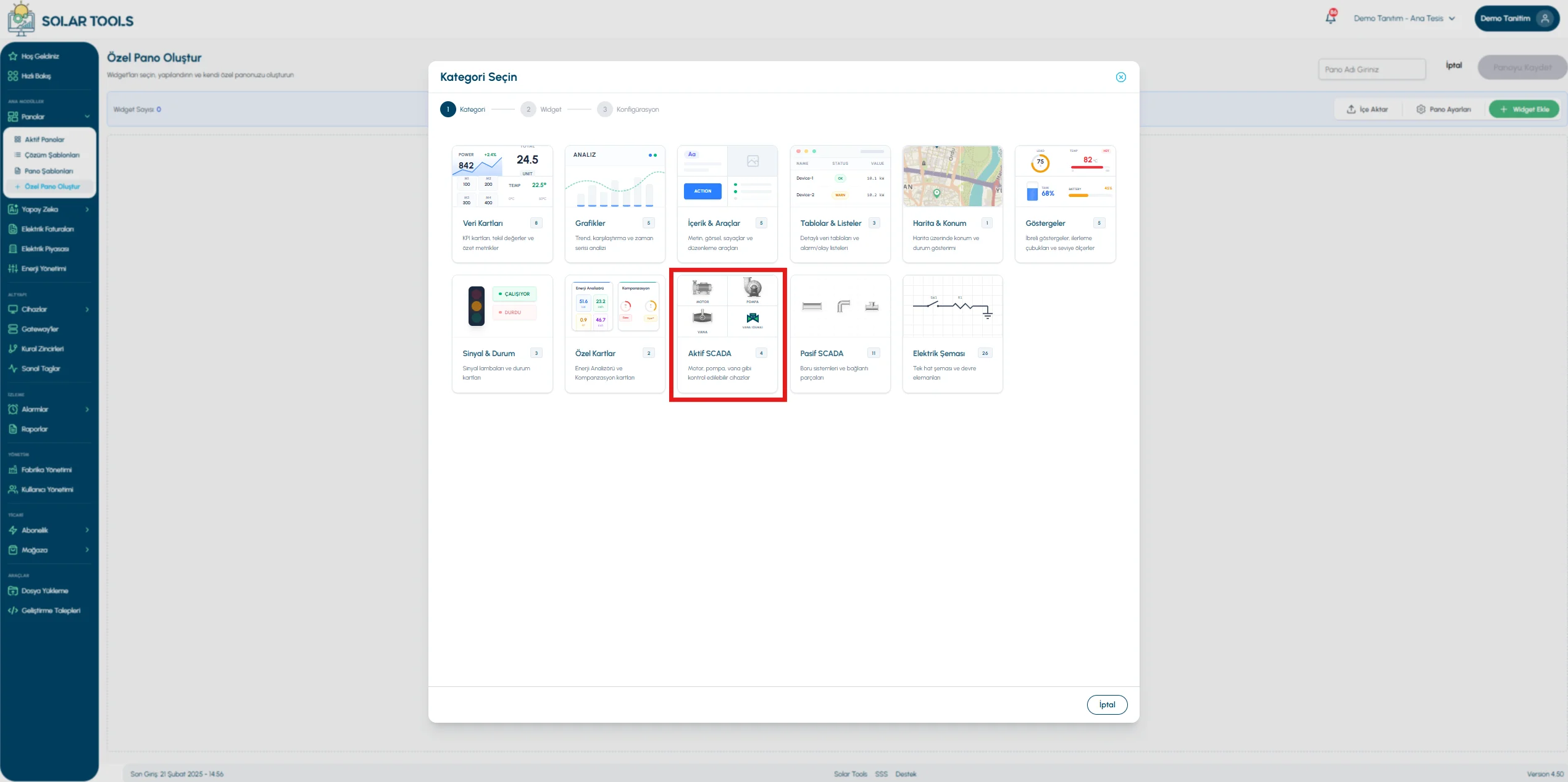

Active SCADA category — all sub-widget types
Active Motor
Rotating motor icon — monitor operational status and speed with live animation
Active Motor
Motor running animation
Speed and power label

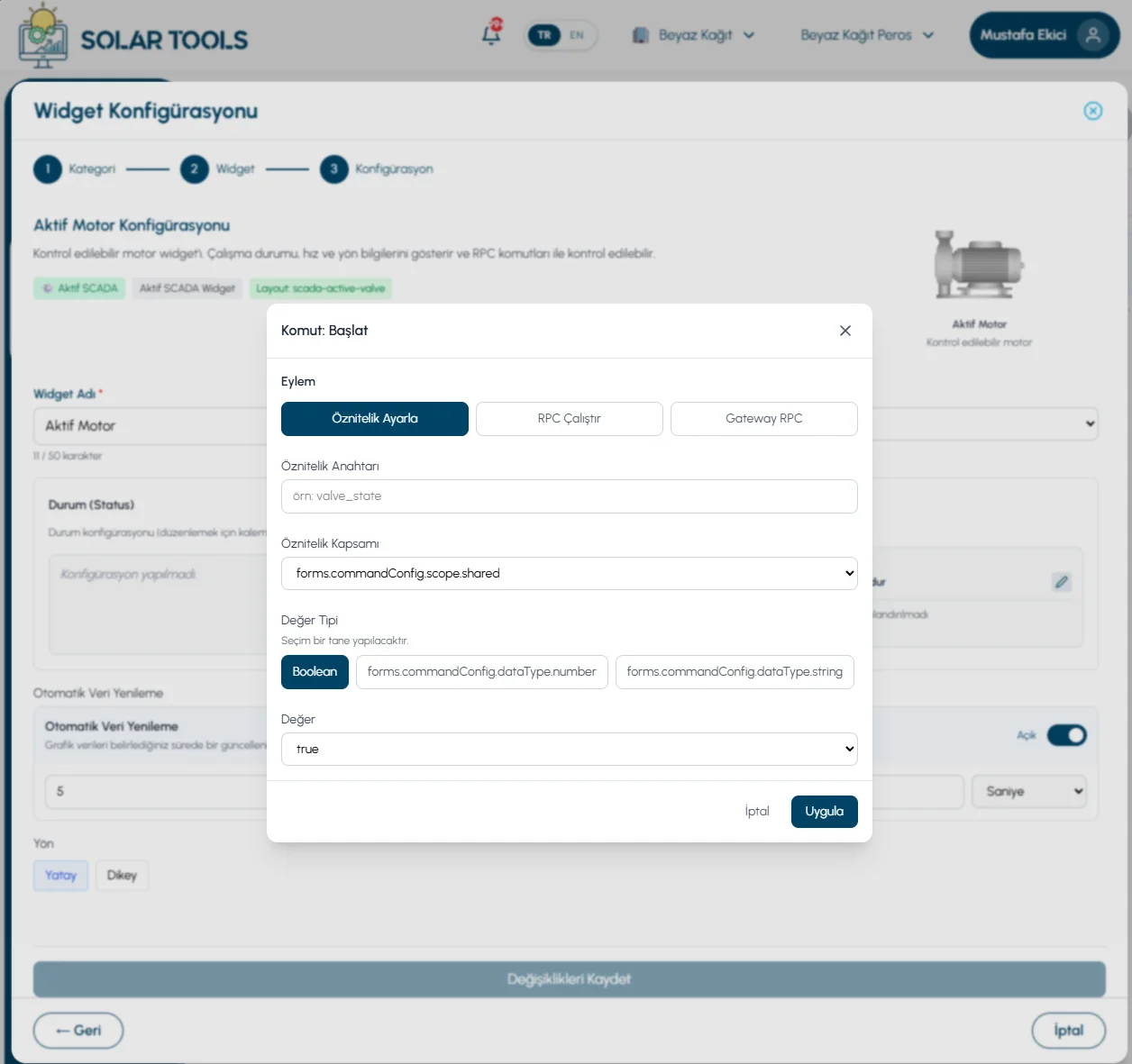

Attribute Settings

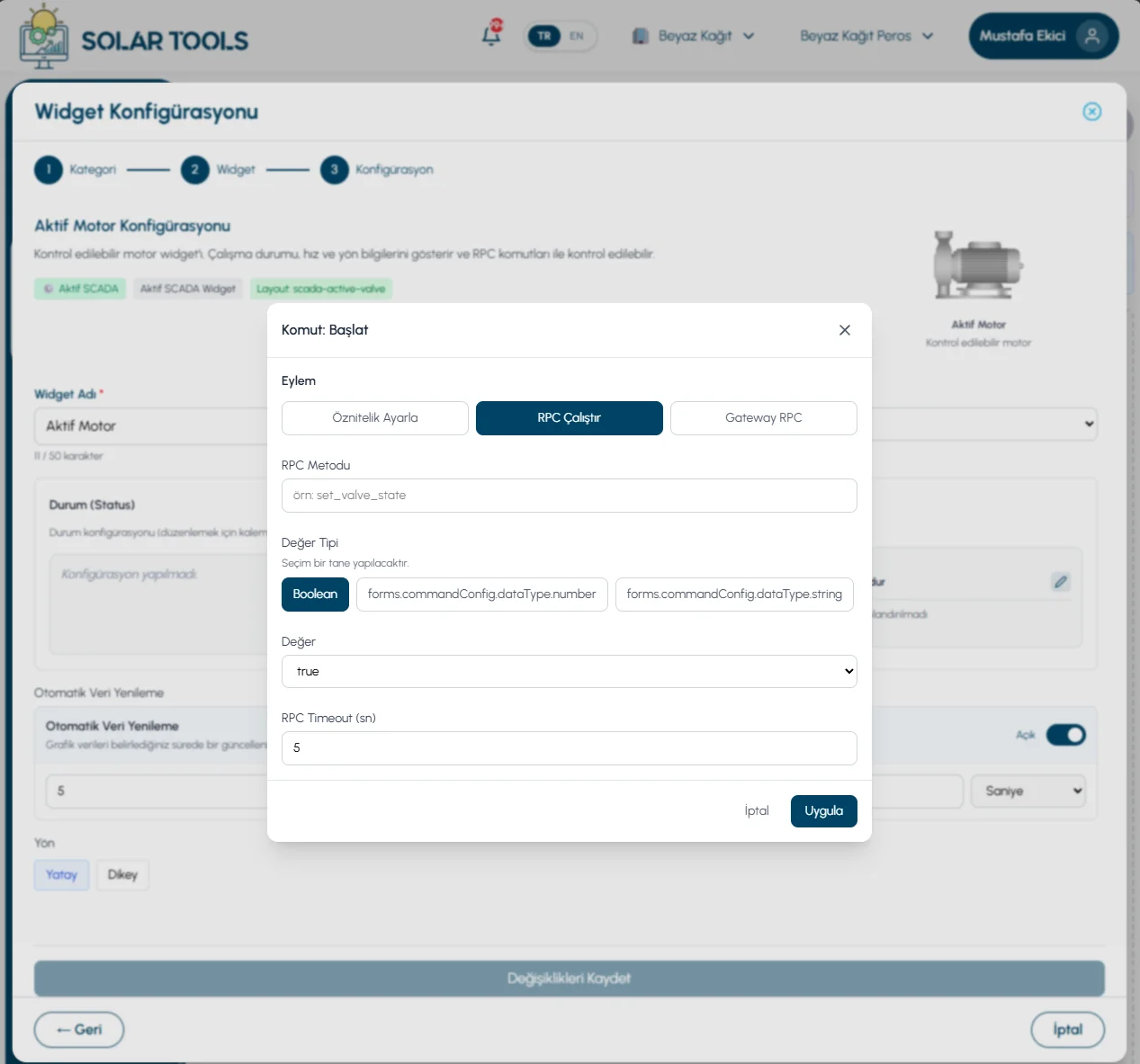

RPC Run

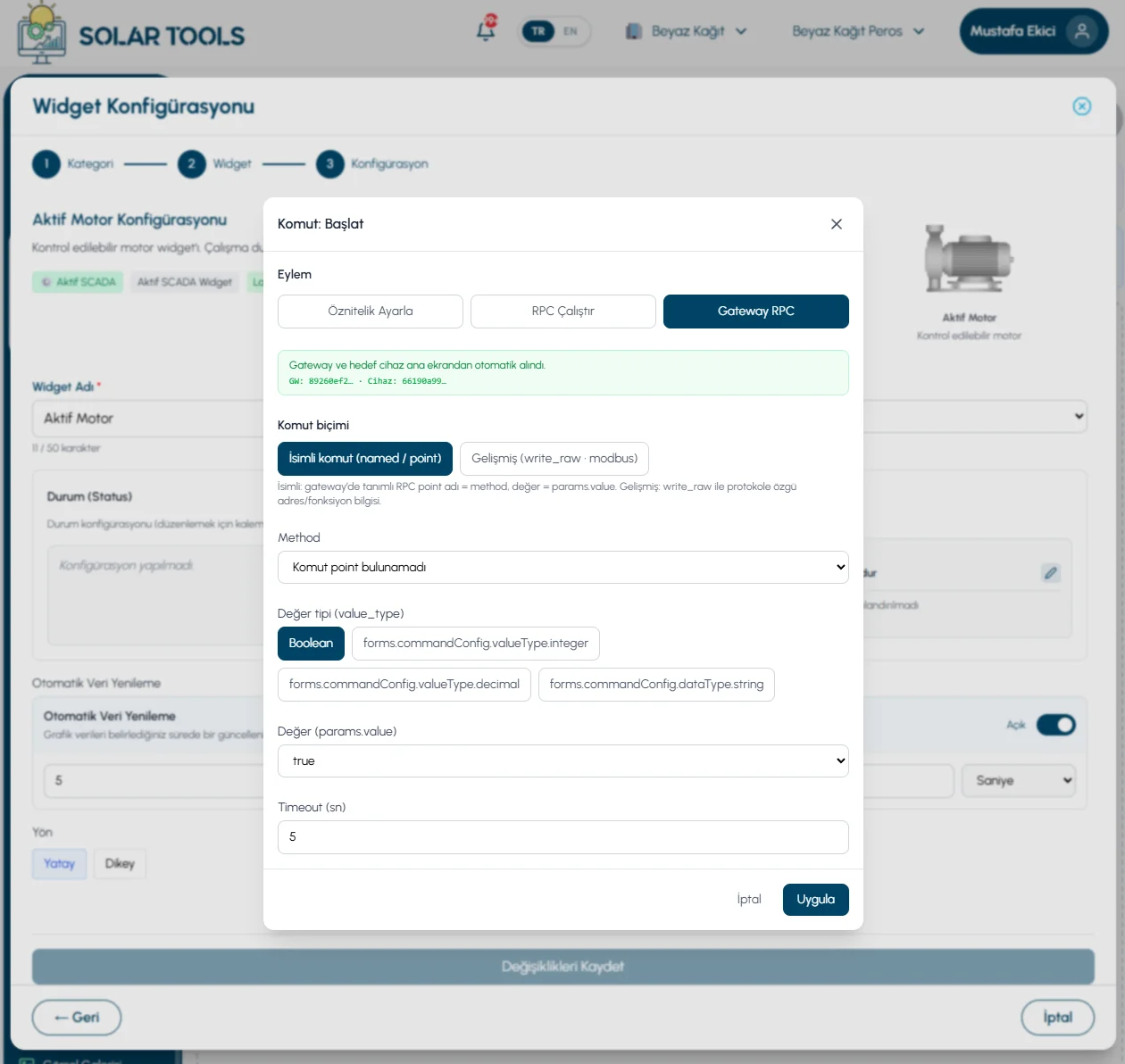

Gateway RPC
Active Pump
Live pump icon featuring flow direction and status animation
Active Pump
Pump flow animation
Status color mapping

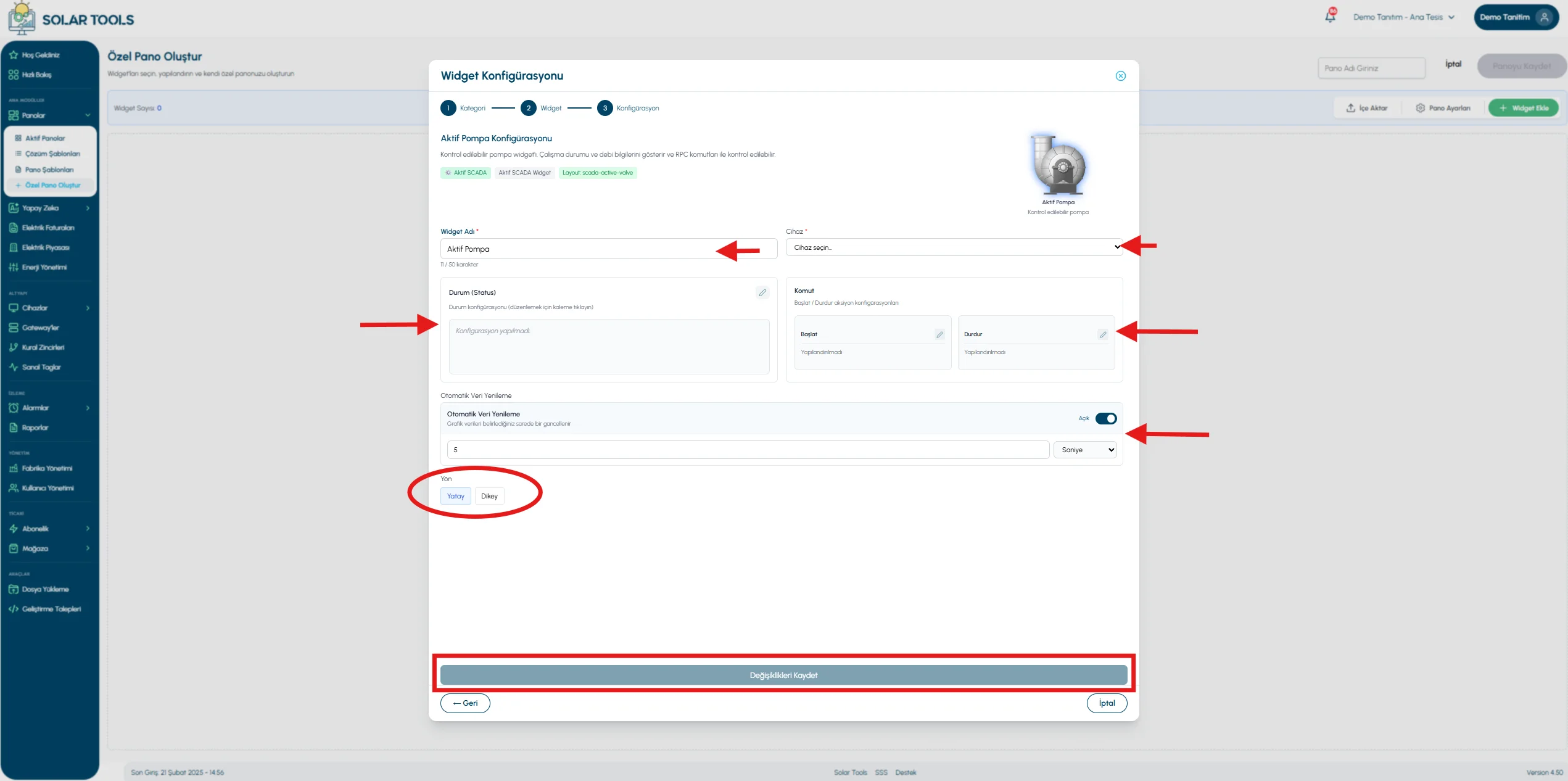

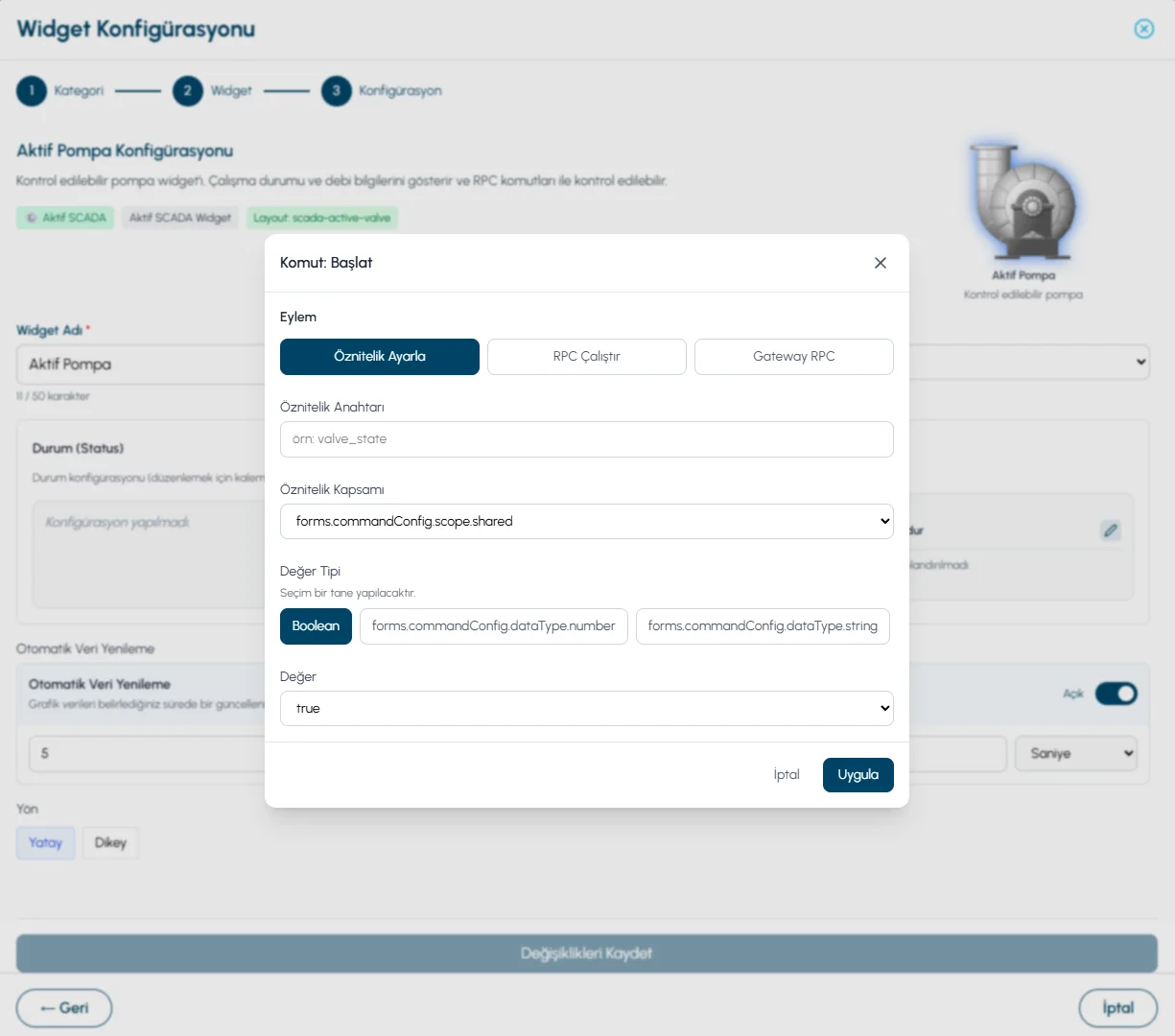

Attribute Settings

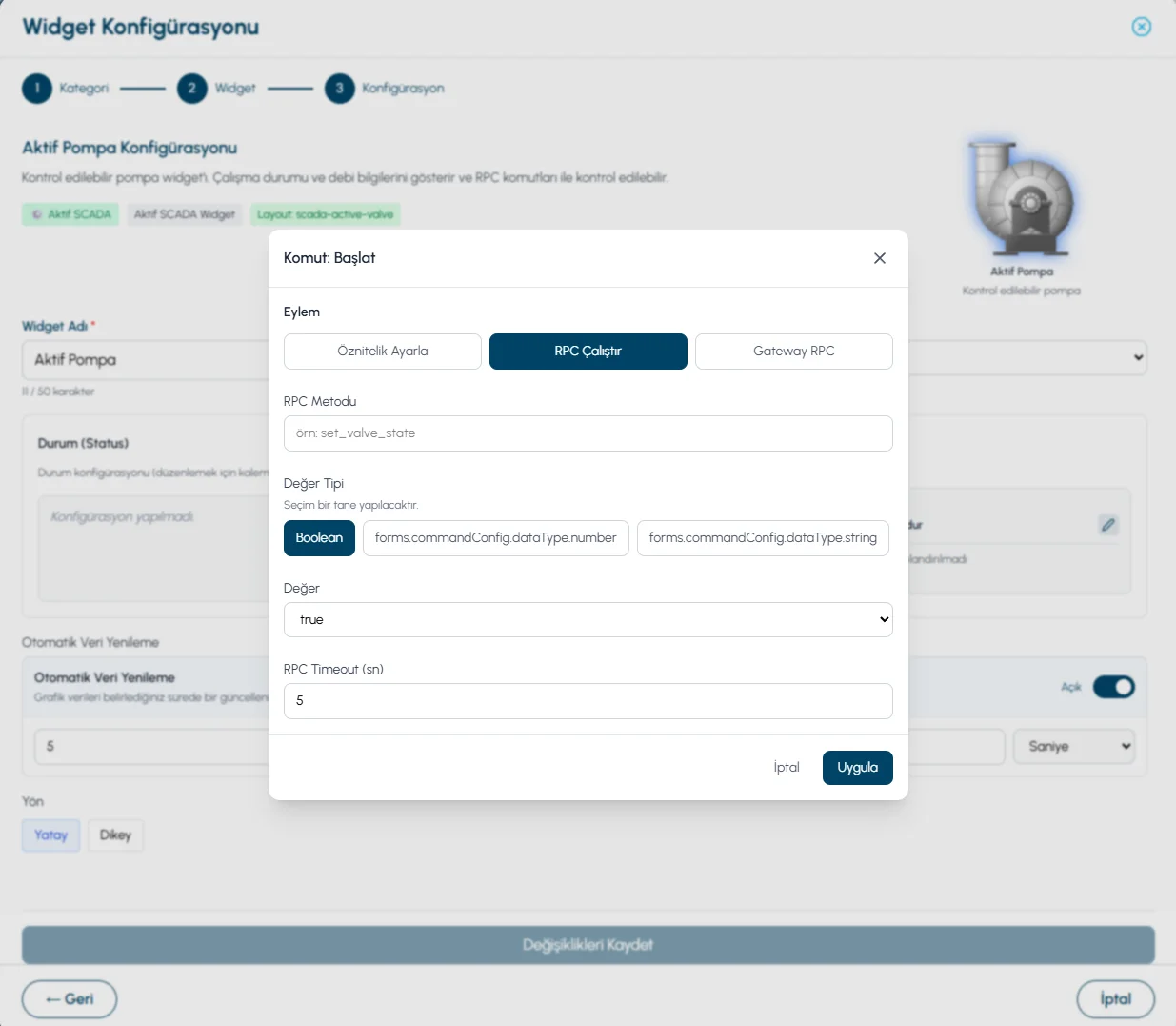

RPC Run

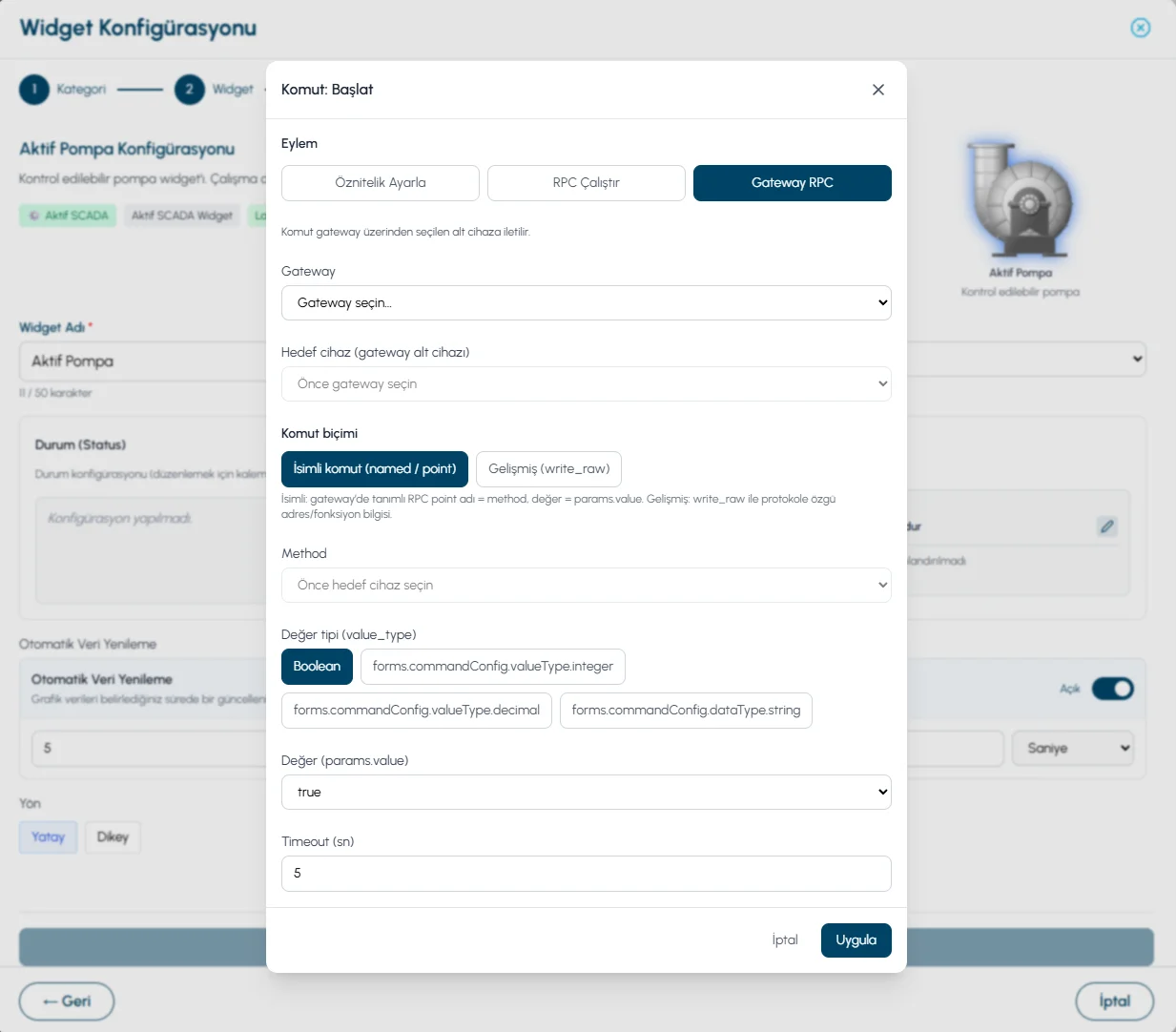

Gateway RPC

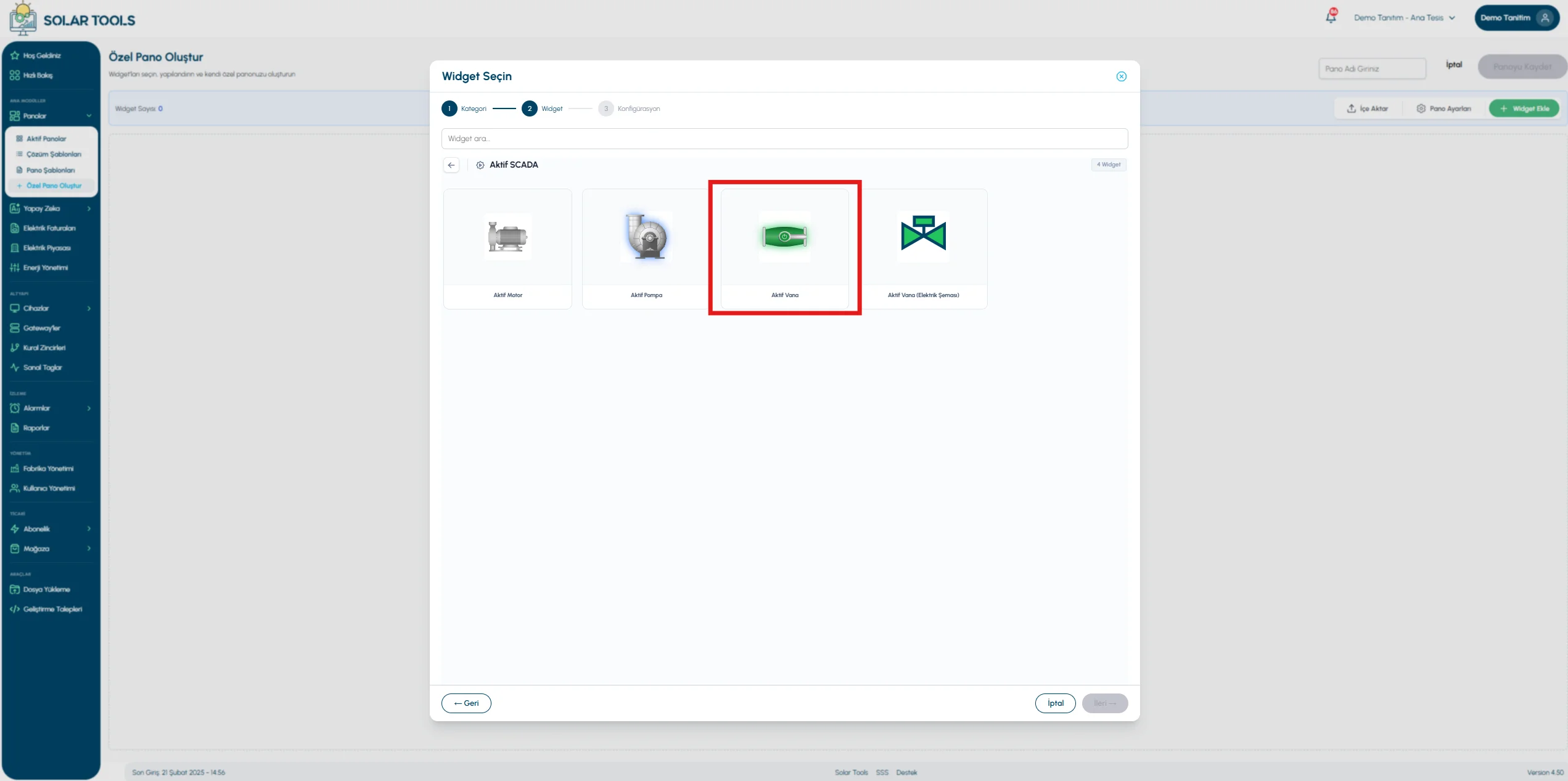

Active Valve
Show open/closed operational status with animated SCADA symbol
Active Valve
Open valve view
Closed valve view

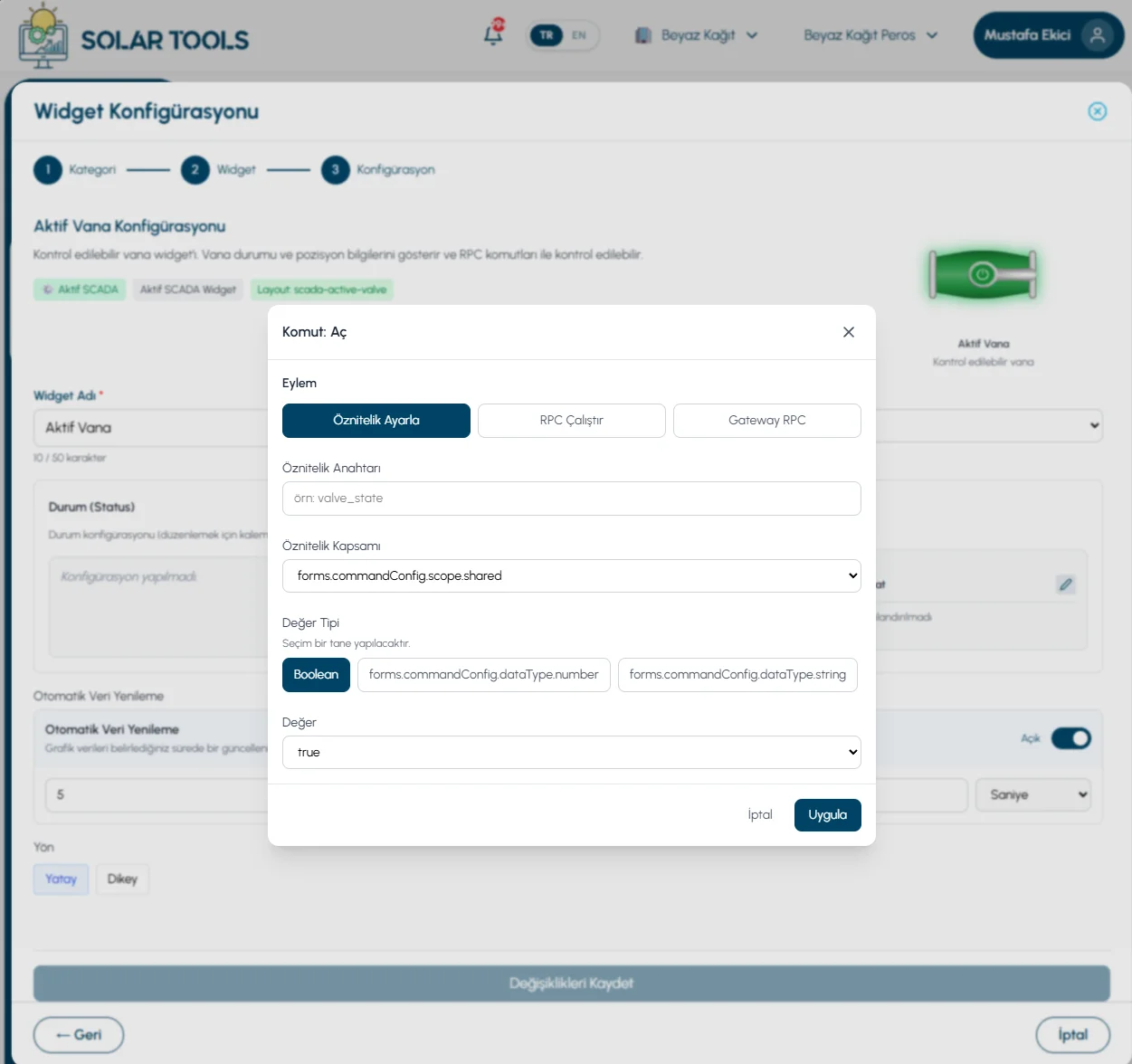

Attribute Settings

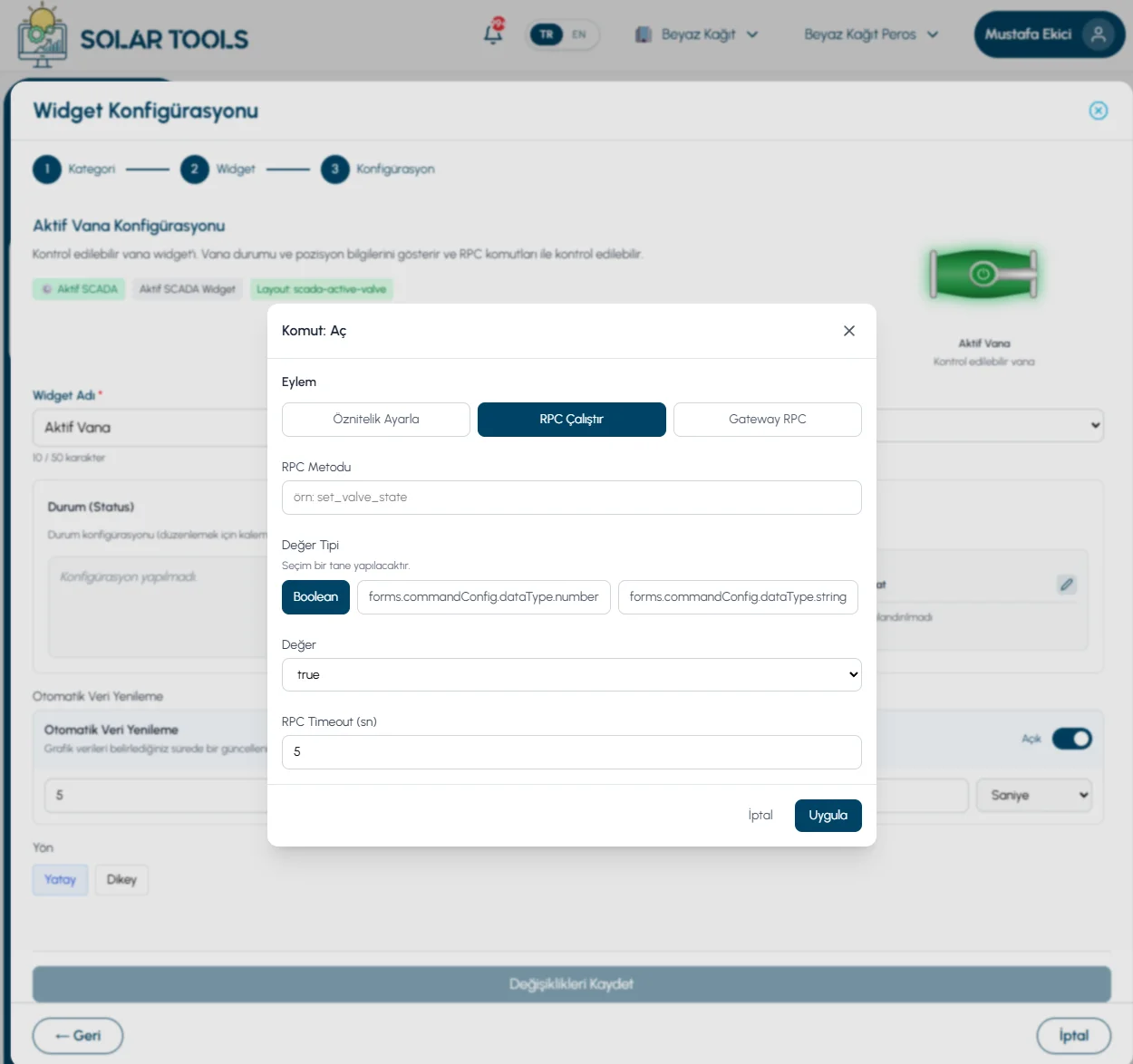

RPC Run

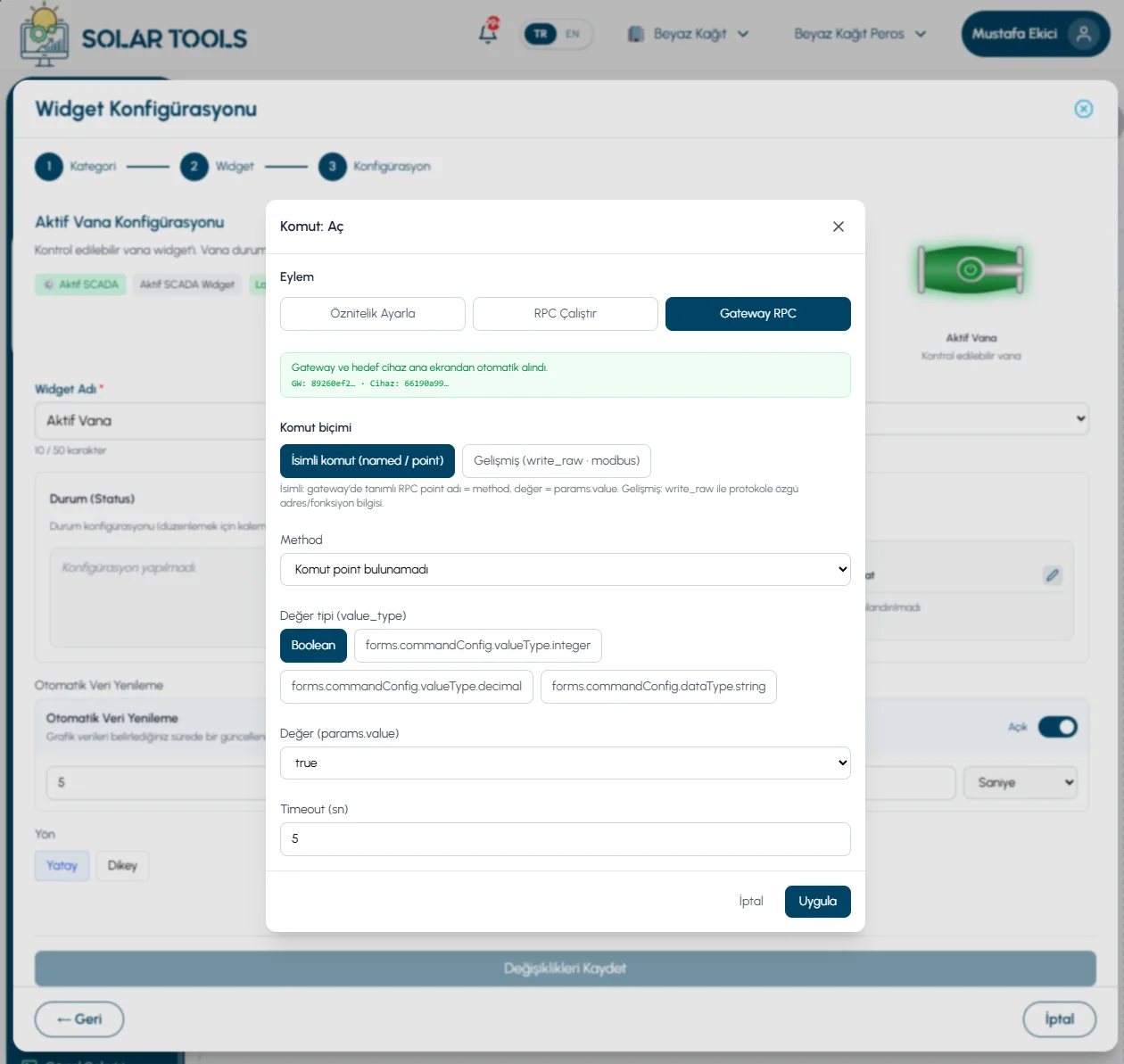

Gateway RPC

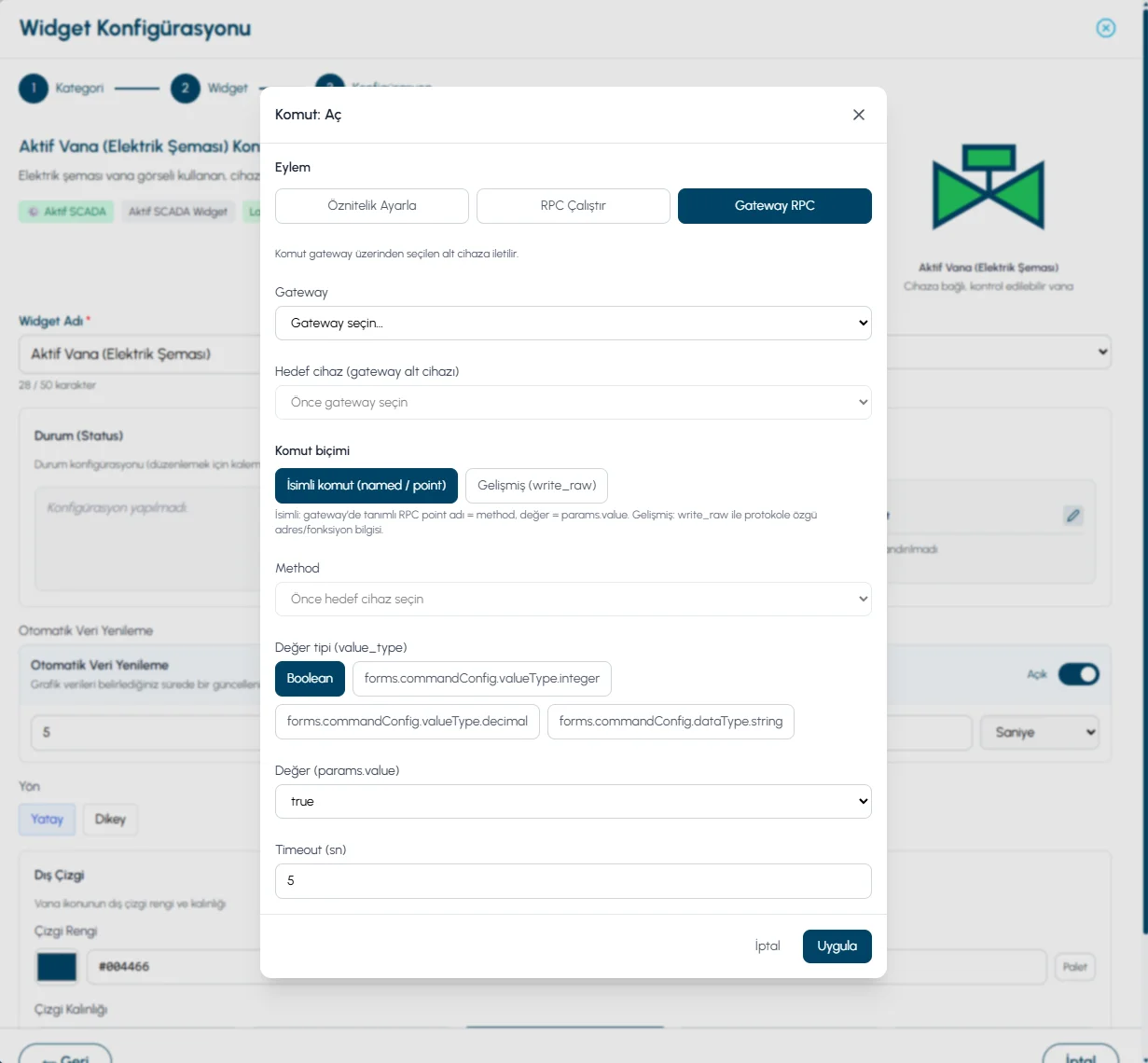

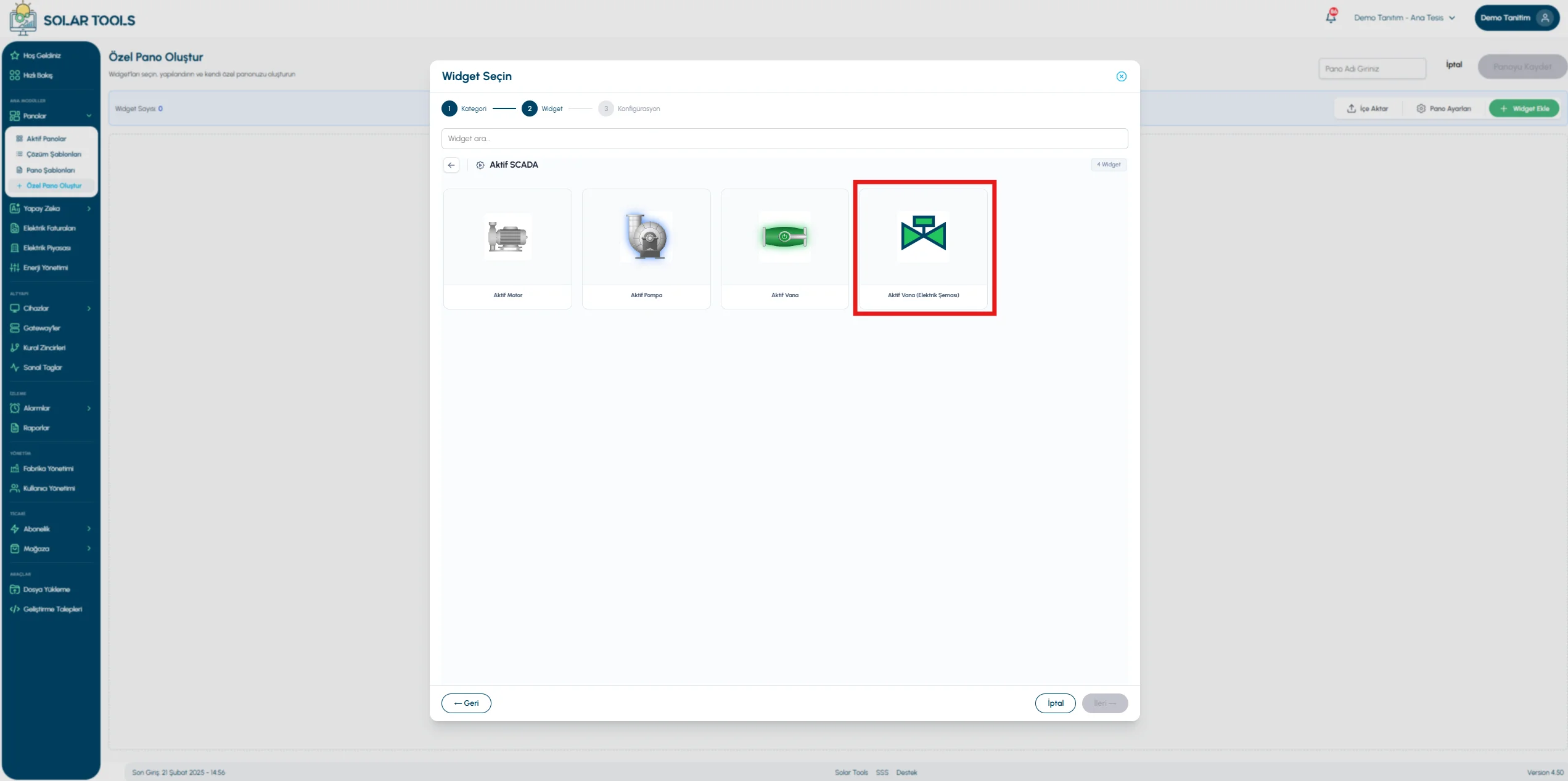

Electric Valve
Electric actuated valve — works integrated with remote open/close commands
Electric Valve
Electric actuator symbol
Command status display

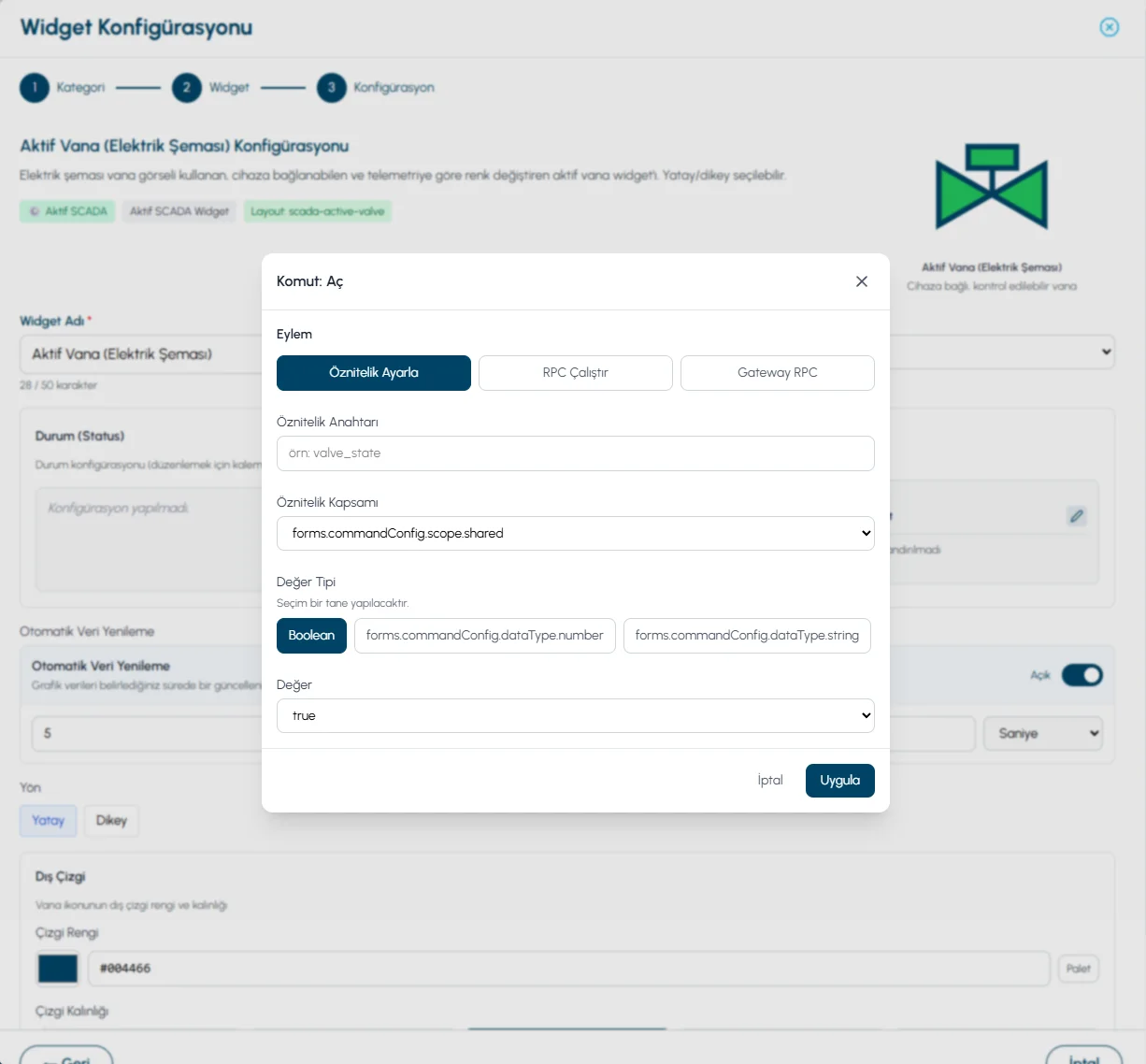

Attribute Settings

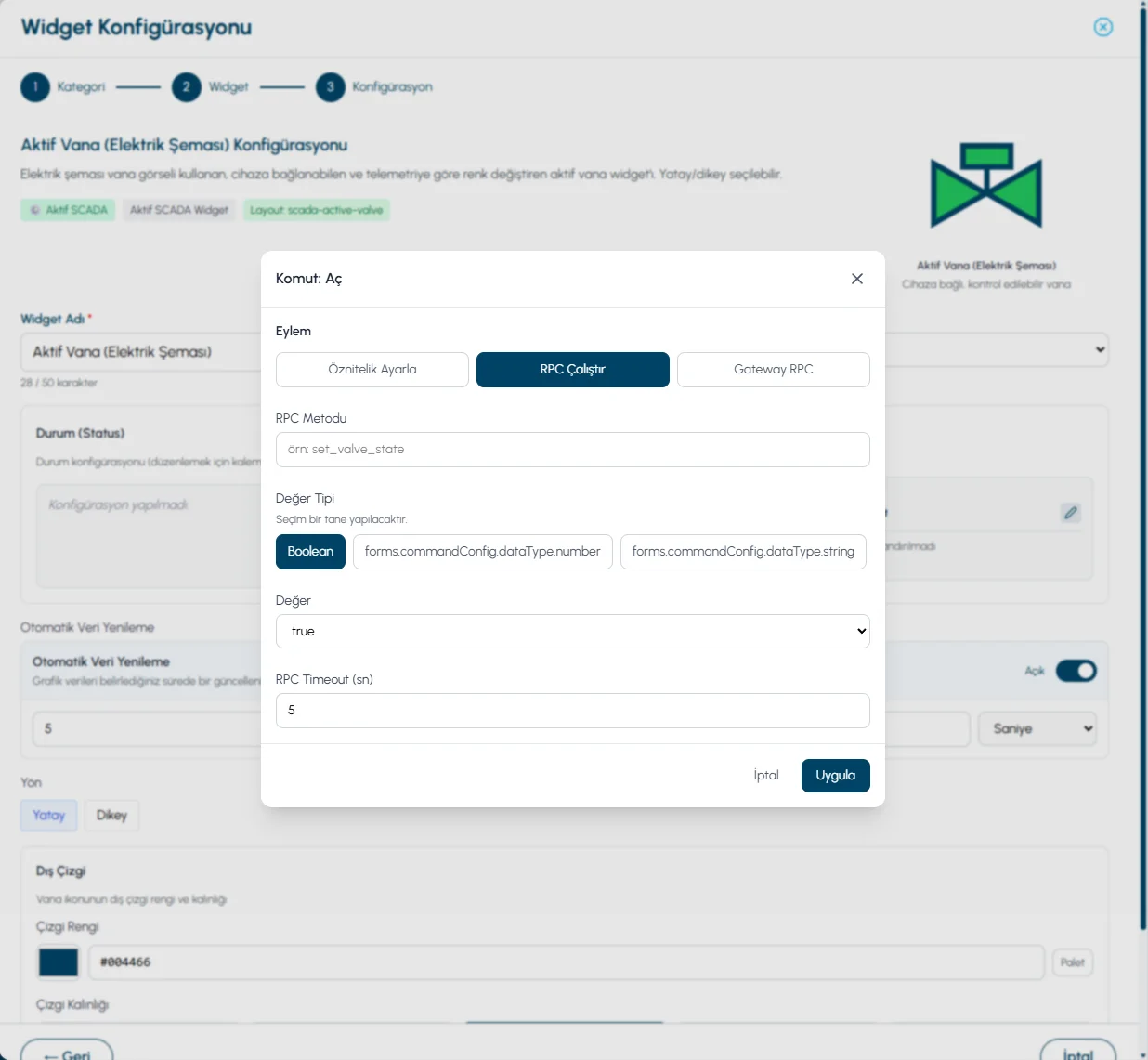

RPC Run
Gateway RPC
