AI Configuration
AI Configuration
Configure your facility, weather data source, and inverter strings for accurate AI model performance.
For the SolarTools AI engine to operate with high accuracy, you must introduce your power plant's physical characteristics and weather infrastructure to the system via the AI Configuration page.

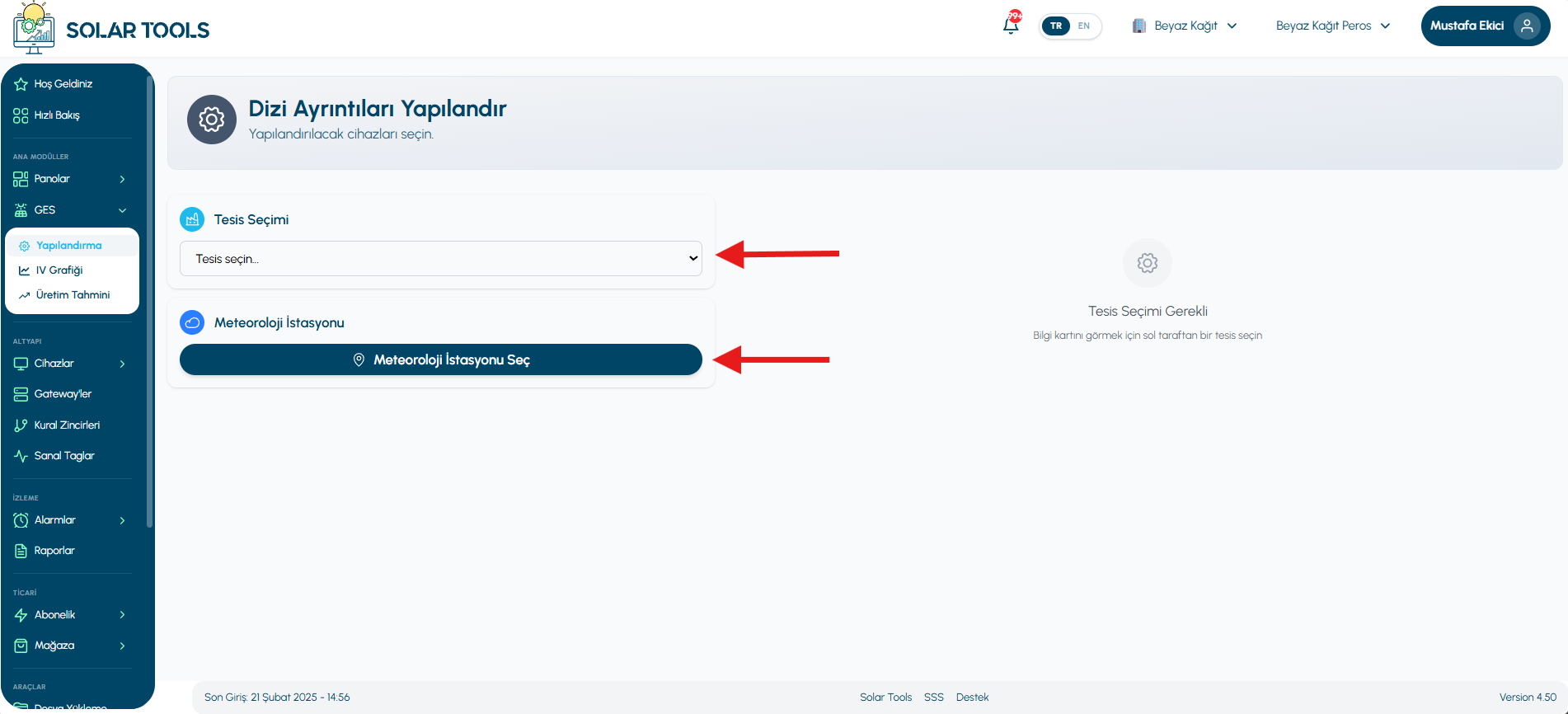

1. Facility and Station Selection
Determine the facility to be analyzed and the reference weather station.
🏢 Facility & Weather Matching
After selecting your facility, you must link a Meteorological Station so the system can retrieve irradiance data.

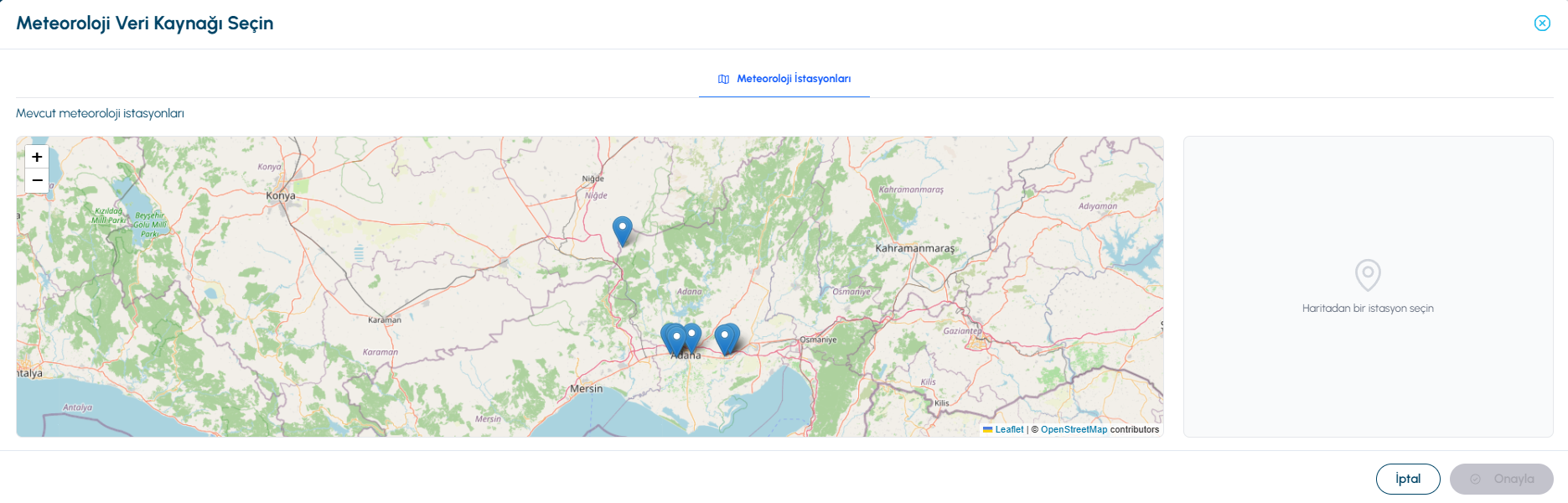

2. Map-based Station Assignment
Choose the closest weather source for your plant.
🗺️ Location-Based Precision Data
Select the closest OpenMeteo station to your facility directly on the interactive map to improve radiation forecast accuracy.

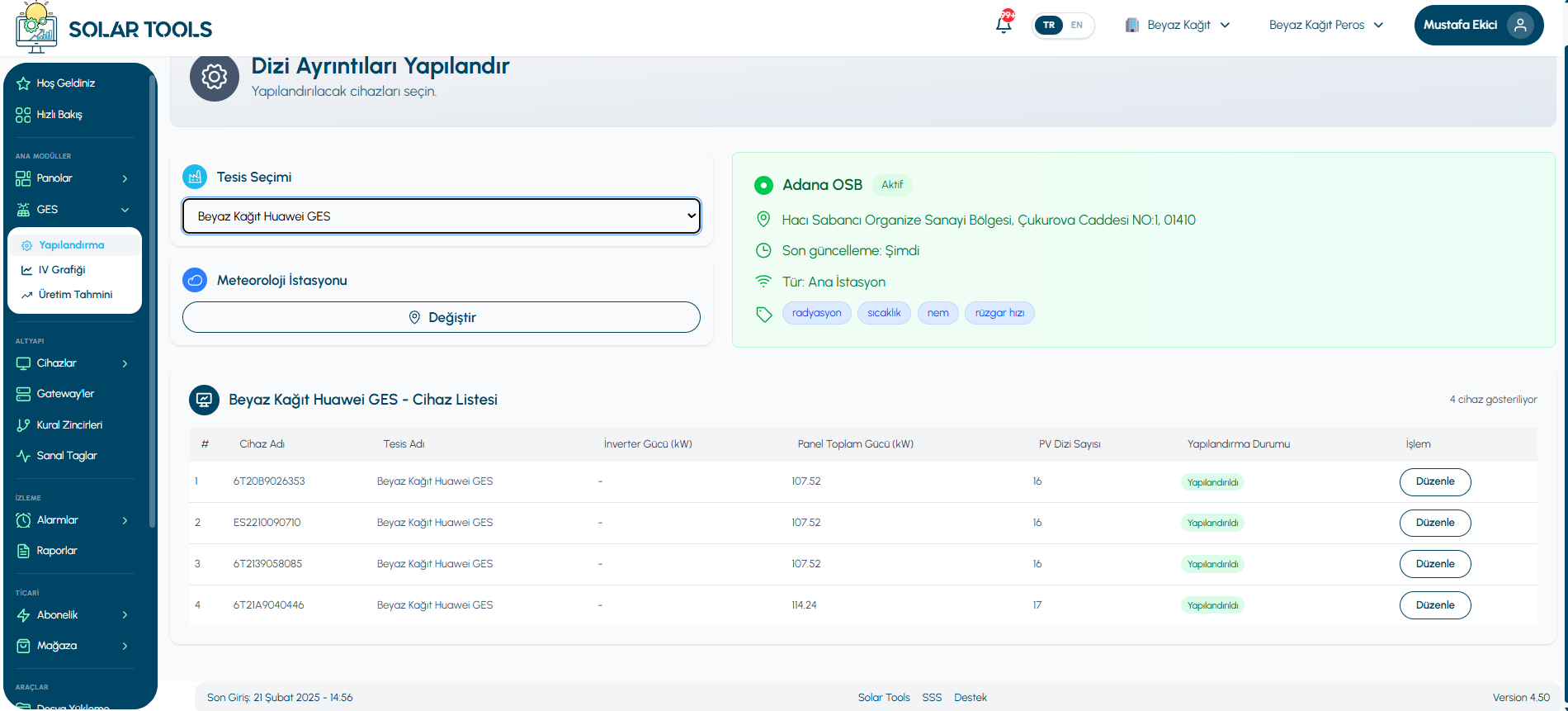

3. Device and String Details & Configuration
Configure your inverters and enter module and capacity information for each string.
⚡ Device List and Editing

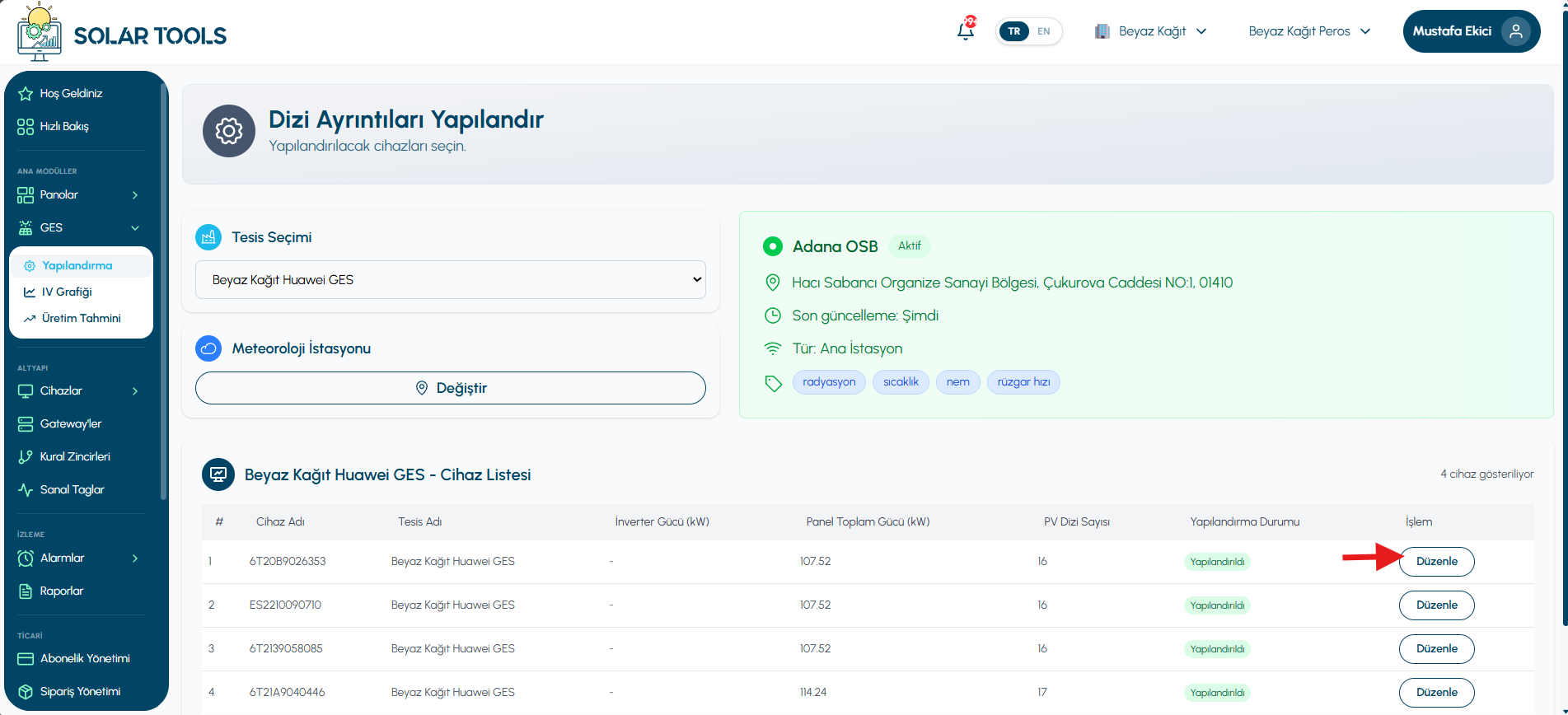

Once matching is complete, click the Edit button for listed devices to input the capacity of each string into the AI model.
🛠️ Configuration Steps
1. Configuration Panel
2. Manufacturer & Module Selection
3. Paired String Matching
4. Bulk Apply
⚙️ 1. Configuration Panel
Clicking the Edit button opens the panel where you can manage PV string rows for the selected inverter device.

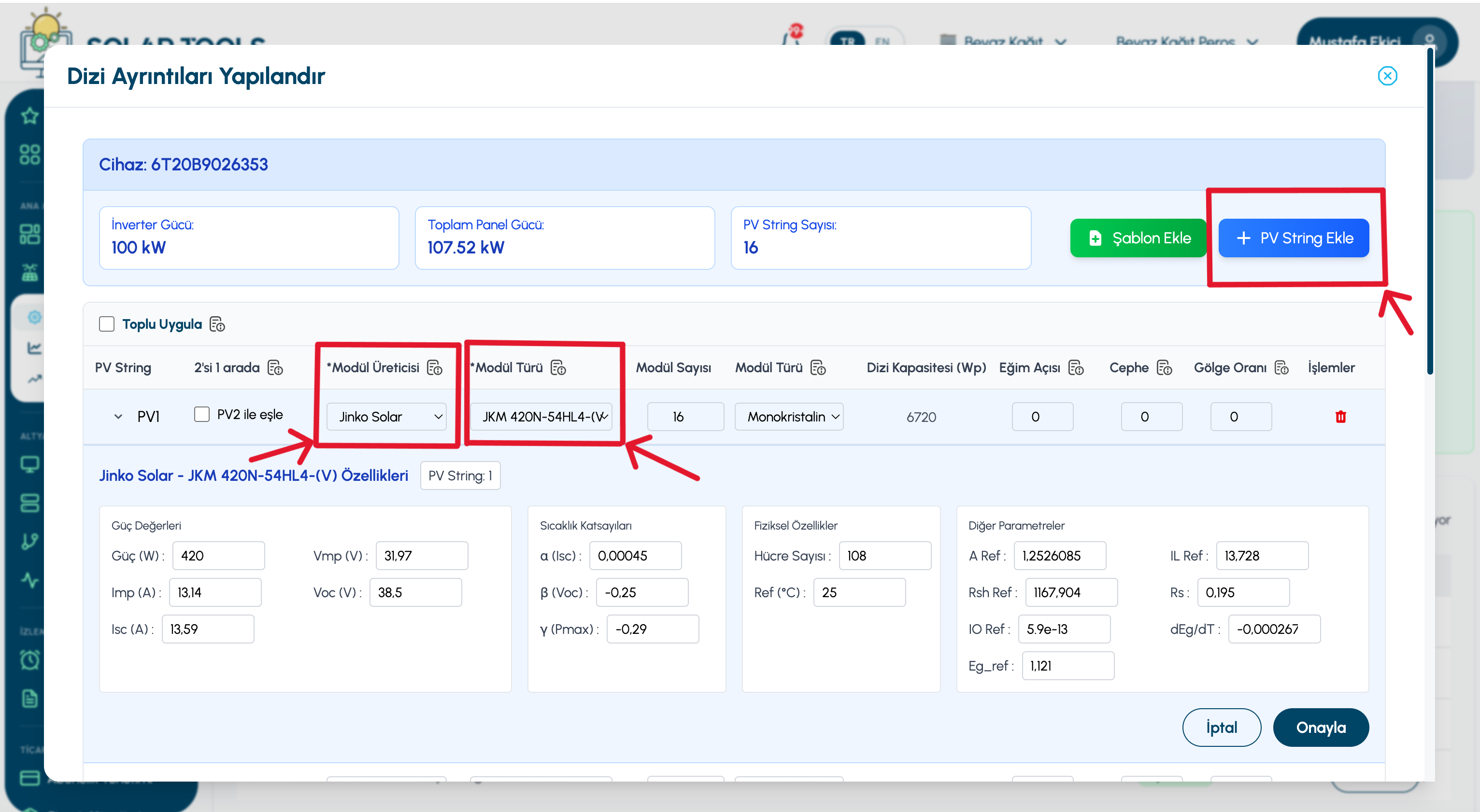

☀️ 2. Manufacturer & Module Selection
Selecting a Manufacturer and Module Type automatically fills in power, efficiency, and electrical parameters.

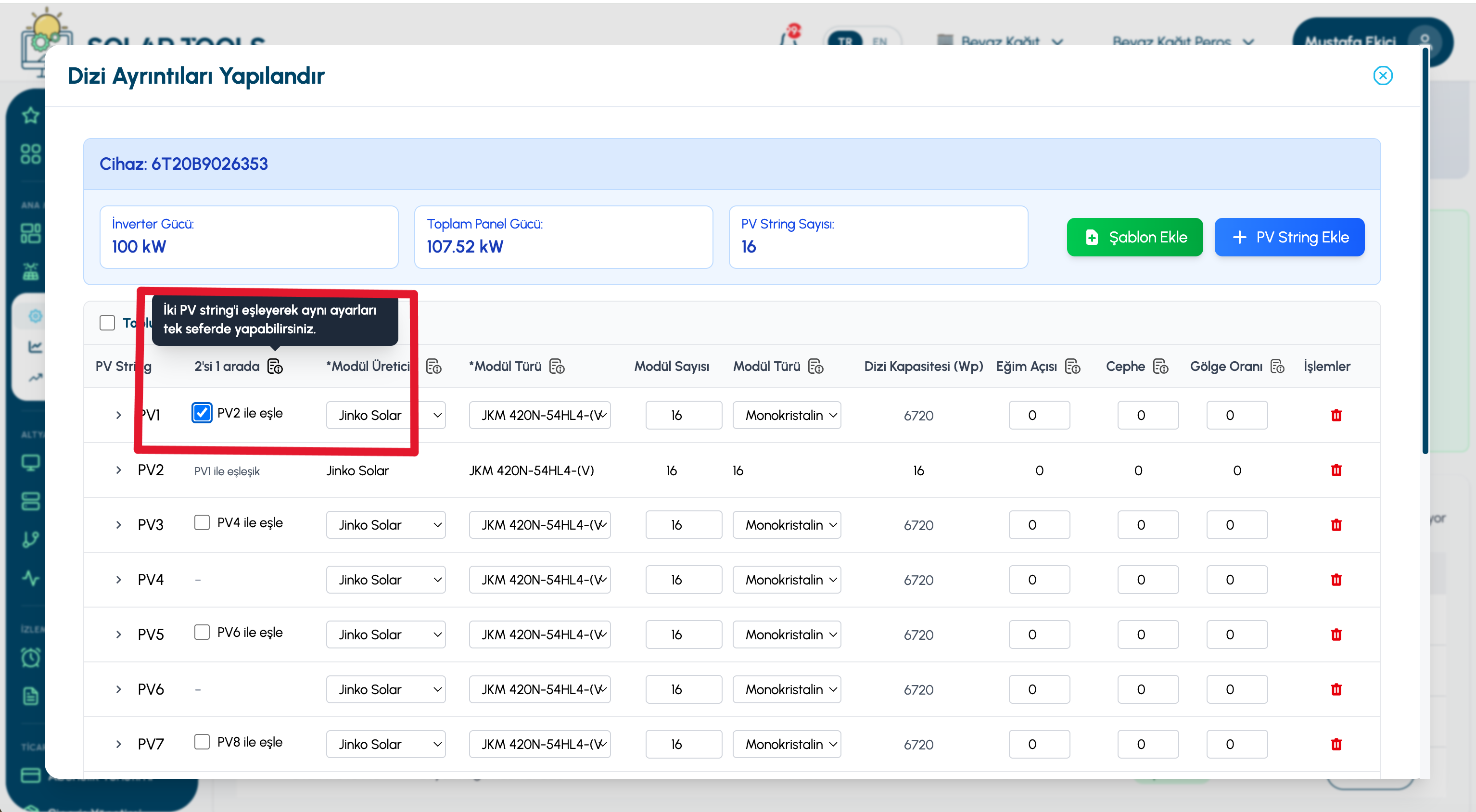

🔗 3. Paired String Matching
Use the Pair with next option to link two strings with identical settings and configure them simultaneously.

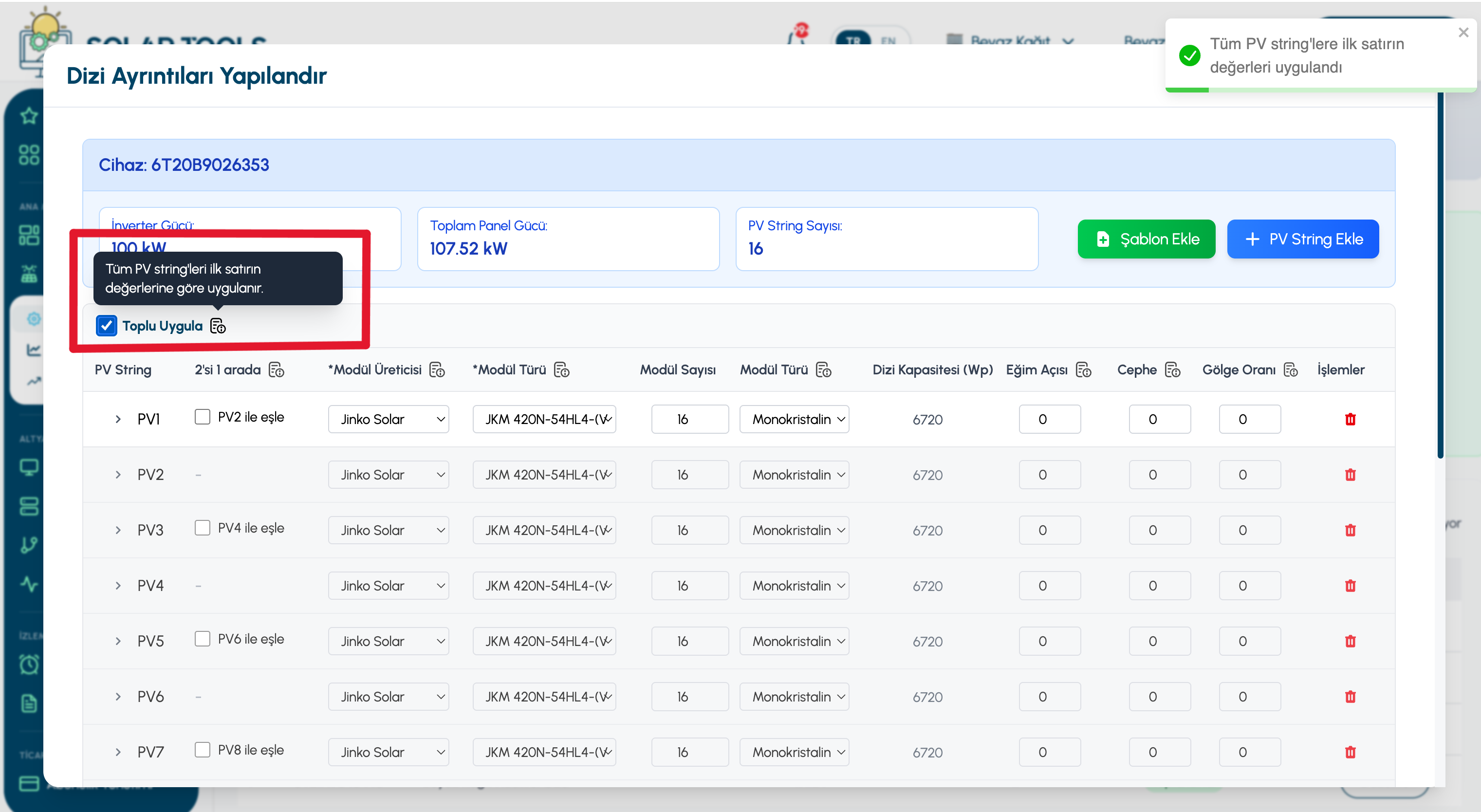

⚡ 4. Bulk Apply
Enable Bulk Apply to copy the first row's settings across all PV strings in a single click.
